Comparing M1 Carbines — The new Inland vs. the 3rd Generation Universal


Today we compare the new Inland Manufacturing M1 Carbine:

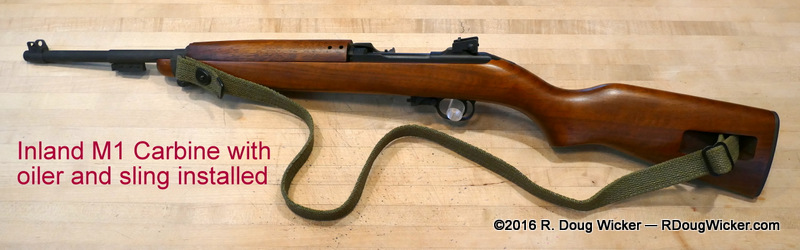

Inland M1 Carbine with oiler and sling (both sent free after registration)

Inland M1 Carbine with oiler and sling

to the third generation M1 Carbine produced by Universal Firearms:

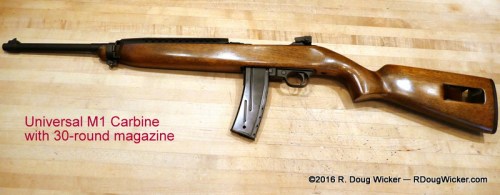

Universal M1 Carbine — 3rd Generation

Universal M1 Carbine — 3rd Generation

The new Inland M1 Carbine (discussed on Wednesday’s blog article) is a true copy of the original M1 Carbines manufactured during World War II.  Indeed, all parts going into Inland Manufacturing’s new iteration are compatible with U.S.G.I. (U.S. Government Issue) examples made by Winchester, the original Inland division of General Motors, Rock-Ola, IBM, and others.  After the war many returning servicemen longed for M1 Carbines for their own, as the rifle was lightweight, suitable for hunting medium-sized game, and easy to shoot with remarkably light recoil.  And so it was that surplus M1 Carbines were released by the government onto the civilian market, but demand eventually outstripped supply.  At this point various civilian manufacturers stepped forward to fill the void, most often using leftover parts to assemble new M1 Carbines, or to refurbish older ones.  These companies included Bullseye Gun Works; ERMA; Global Arms; H&S; HOWA (Japan); Johnston-Tucker Arms; Millville Ordnance; National Ordnance, Plainfield Machine; Rowen, Becker Company; Steelville Manufacturing, Tiroler Sportwaffenfabrik und Apparatenbau (Austria), Tri-State Tool & Die; William’s Gun Sight Company; and, of course, Universal Firearms.

Universal M1 Carbine with metal handguard

Universal M1 Carbine with non-U.S.G.I. metal handguard

Universal began producing their Universal M1 Carbine using surplus parts, but as supplies dried up they began manufacturing in-house.  Unfortunately, in-house means increased cost.  Universal thus redesigned the basic M1 Carbine to cut manufacturing cost, resulting in a reduction in quality, reliability, and according to some, safety.

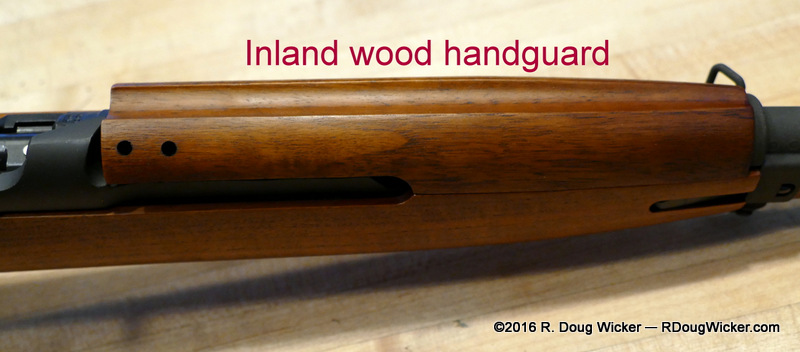

Inland with U.S.G.I.-style wood handguard

Inland with U.S.G.I.-style wood handguard

An abject lesson for the uneducated gun collector: Stick with what you know, and research what you don’t.  I’ve always wanted an M1 Carbine, so when I found the Universal 3rd Generation pictured here at what I thought was a good price, I snatched it up.  Yes, it was a good price . . . for a U.S.G.I. original.  For a Universal it was not.  After I took it home and began researching M1 Carbines, I found that the 3rd generation Universals bore little in common with the original design, and even far less in quality and reliability.

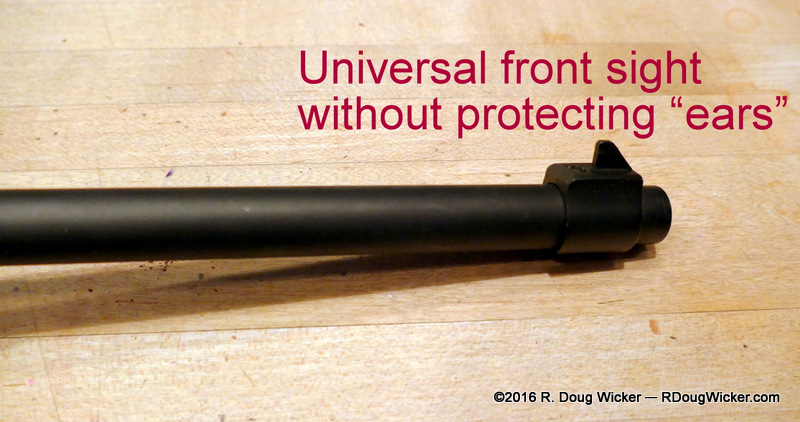

Universal M1 Carbine front sight lacks protective "ears"

Universal M1 Carbine front sight lacks protective “ears”

There are of course the little things, such as the use of a metal handguard rather than the more expensive wood piece of the original.  Then there’s the front sight, which lacks the protective “ears” characteristic of military weaponry of the era.

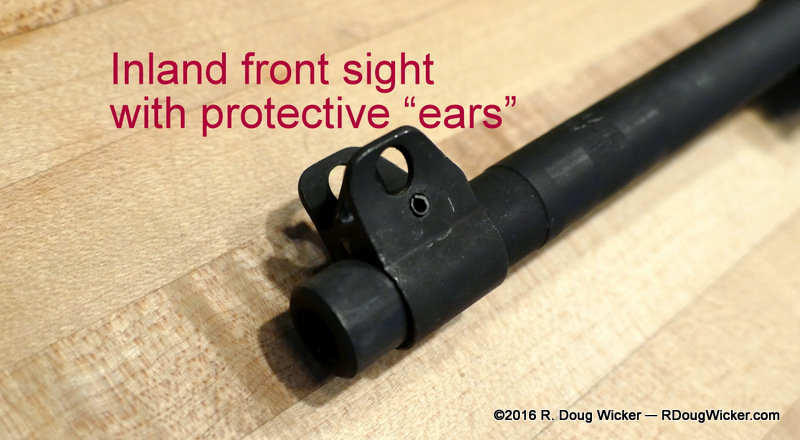

Inland front sight protective "ears"

Inland front sight protective “ears”

This is not to say that the M1 Carbine design was perfect straight out of the starting gate.  There was room for improvement.  For instance, the original design had a push-button safety.

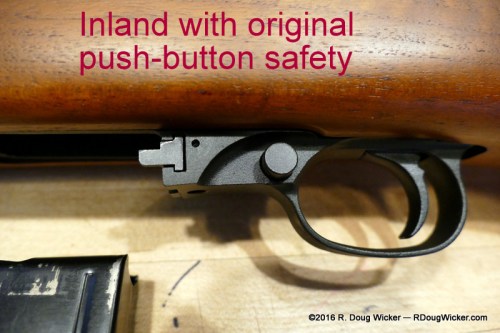

Inland with original push-button safety disengaged

Inland with original push-button safety

Soldiers in the field hated it, because in the heat of battle it was too easily mistaken for the nearby magazine release.  In a firefight it’s just considered bad form to drop you fully loaded magazine onto French soil when you’re supposed to be firing your weapon.  Pretty embarrassing, actually.

Inland push-button safety (depressed) next to the magazine release button

Inland push-button safety (depressed) next to the magazine release button

Later M1 Carbines substituted this push-button with a flip-lever, and this is the design incorporated on the Universal.

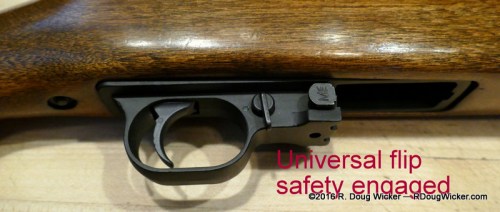

Universal flip safety

Universal flip safety

Other changes really don’t make any sense, at least to this manufacturing novice, and one would think some changes would actually increase manufacturing costs.  One example is the slide lock.  On the U.S.G.I. this is a simple push-button mounted atop the slide.

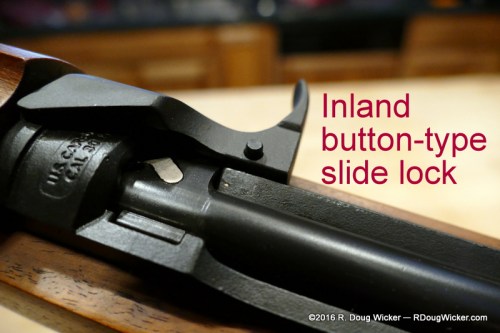

Inland push-button slide lock

Inland push-button slide lock

Universal decided to replace this simple, effective, and cheap system of locking back the slide with a lever mounted behind the slide directly onto the receiver.

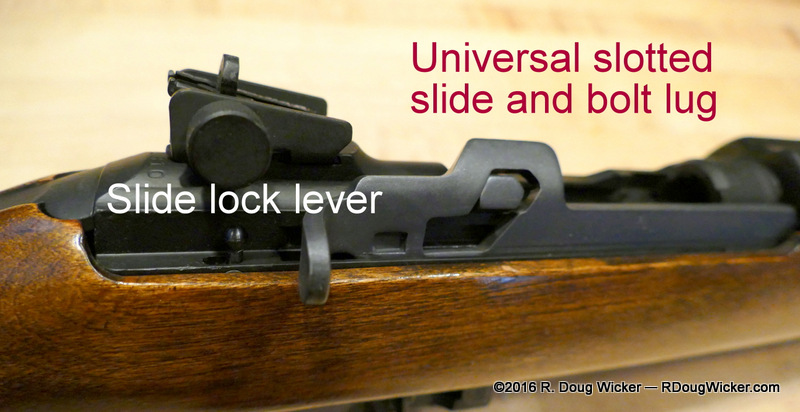

Universal M1 Carbine lever-type slide lock; also pictured are the slotted slide and bolt lug

Rotating bolt, bolt lug, and slotted slide from a Universal M1 Carbine

Other cost-cutting measures seem too trivial to have warranted implementation.  Take for instance the slide at the point were it mates up with the lug on the rotating bolt.  On the U.S.G.I M1 Carbine this is a solid piece.  Universal thinned out this area, which resulted in a slotted slide wherein the connection to the bolt lug is clearly visible.  You can see this slotted slide-and-bolt lug configuration above, and here below is the Inland with it’s true-to-the-original slide:

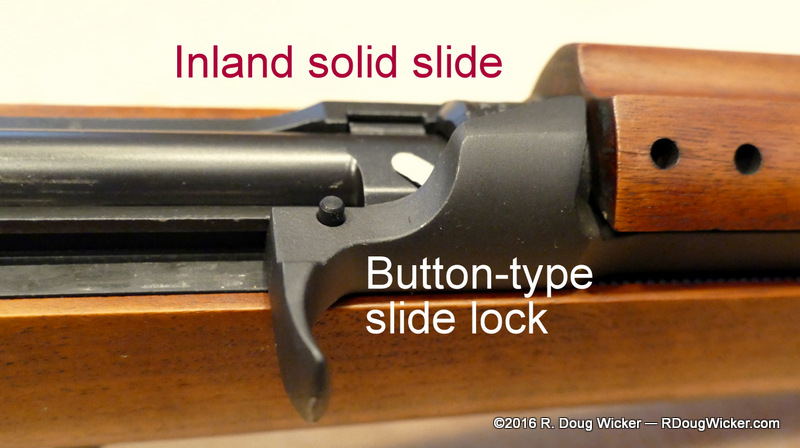

U.S.G.I. button-type slide lock

U.S.G.I. solid slide

Some parts appear relatively unchanged.  The U.S.G.I. had a rear sight that was fully adjustable for both elevation and windage.

Inland fully adjustable rear sight

Inland fully adjustable rear sight

This is one feature retained on the later versions of the Universals.

Rotating bolt, bolt lug, and slotted slide from a Universal M1 Carbine

Universal adjustable rear sight

As for the wood furniture, the Universal example pictured here has a relatively shiny finish, as you can see in the closeup image below of the forestock and Type-2 barrel band/sling swivel:

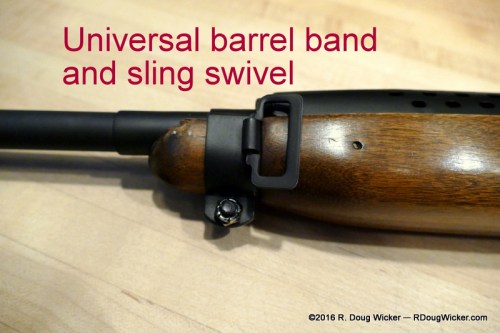

Universal M1 Carbine barrel band and sling swivel

Universal M1 Carbine barrel band and sling swivel

The new Inland Manufacturing, however, pride themselves on not only retaining the matte finish, but even matching the wood grain and the stain of the original to duplicate as close as possible the look of the guns that came out of the old Inland division.  Even the U.S. Armory Ordnance cartouche is replicated on the stock.

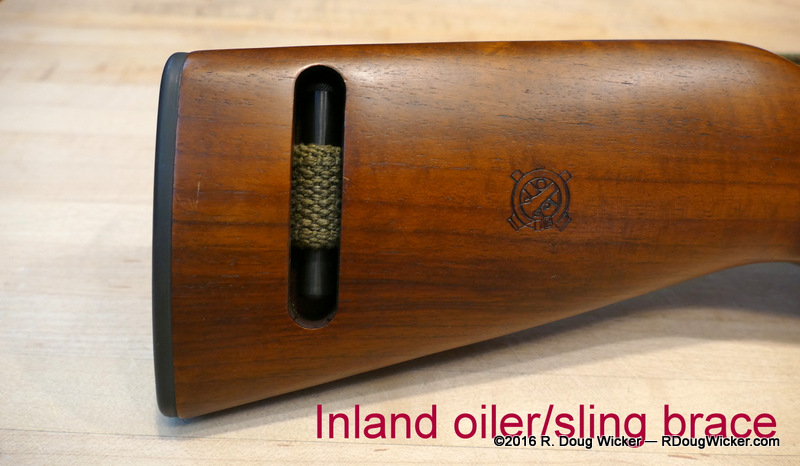

Inland M1 Carbine with oiler and sling (both sent free after registration)

Inland stock duplicating the original Inland’s grain patterns and stain.

One last difference that I find particularly unnecessary and even galling, and I don’t even know if this was original to the Universal or if this change was made by a previous owner.  That would be the screw used to tighten the barrel band around the handguard and the forestock.  On this copy the screw is a hex-head, which is something one would never find on a combat weapon as it makes disassembly and cleaning dependent upon a tool that would normally not be available to the soldier, or otherwise easily lost.

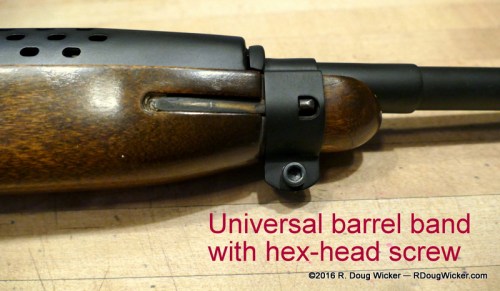

Universal M1 Carbine Type-2 barrel band with hex-head screw

Universal M1 Carbine Type-2 barrel band with hex-head screw

The U.S.G.I. barrel band was tightened into place with a flat-head, which could easily be turned using anything from a coin to the lip of a spent cartridge.  Below is an image of this barrel band screw on a barrel band that has been loosened and moved forward in preparing to remove the handguard.

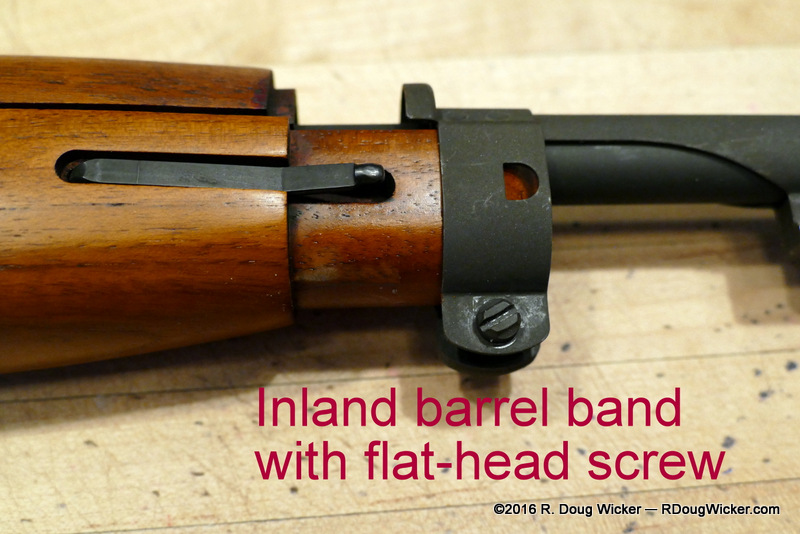

Flat-head screw on barrel band

Flat-head screw on a loosened barrel band

To my gun followers, I hope you’ve enjoyed this week’s look at two very different versions of the .30 M1 Carbine.
